Does anyone know the correct way to bypass a lexus gs 300 factory amplifier having major problems?

I tried bypassing it but all i seem to get is a lot of poppping and whining sounds along with the music. I cant figure out why it is making this sound.

What can the problem be?Thanks.:)

____________________

Car Covers

Share this post


Link to post
Share on other sites


if its a MK2 then i have all the measurements to make an easy plug and play loom involving 2 x standard toyota iso harnes's

Share this post


Link to post
Share on other sites

if its a MK2 then i have all the measurements to make an easy plug and play loom involving 2 x standard toyota iso harnes's

Can you please show me how this is done? I have a 1998 GS300 and will soon work on my cousins 1999 GS400 after I'm done with mine. Pictures would be great.

Thanks.

Share this post


Link to post
Share on other sites

well i keep trying to get all the photos together.. and im nearly there just never have the time in the evenings to draw it up propperly.. so in the mean time here it goes:

Firstly remove the old sterio and the glove box.

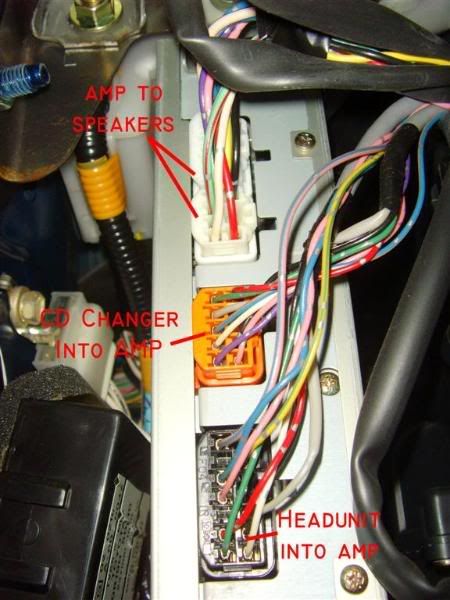

the above photo is in relation to the back of the head unit.. (the photo was before i fully worked out the wiring so ignore the label that says CD changer as this is infact the 3 wires that control the different heights of the stock antane (sp)

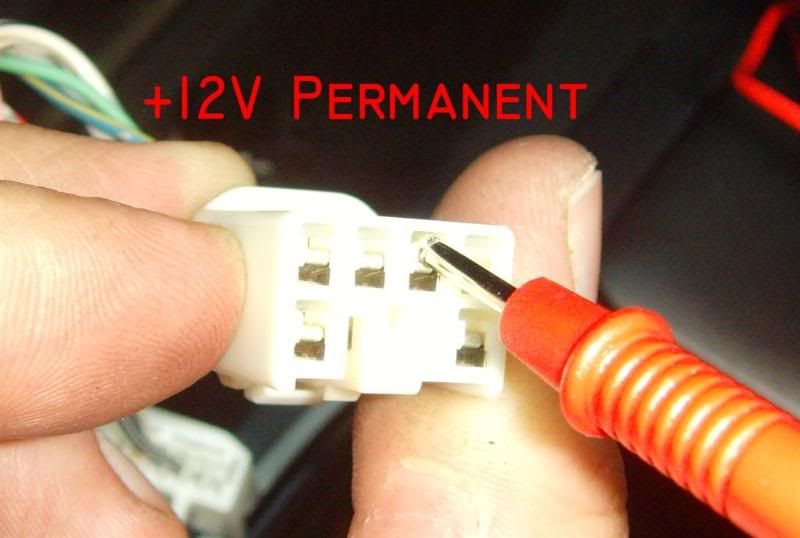

Put simply i only made use of the wire for the antanne and the power, a stock toyota harness has an female interface for this plug and is later mated to a stock iso plug to provide the 12v switched and live plus a ground source free of interference.

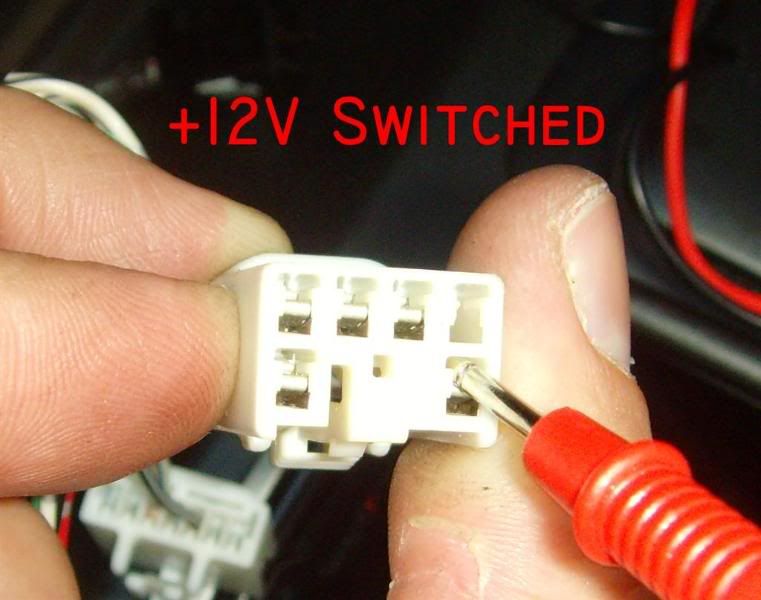

Taking the iso plug i rearanged some of the pins leading to the toyota iso so it matched the 12v signals and the gnd signals as per the photo bellow

Ground was the far left and bottom pin IIRC.



The next phase was to identify where the amp sent the signals to the speakers so we could effectively bypass the amp with a plug and play solution.

This was achieved when we found that the top two plugs on the amp (in white) were the speaker outputs.

These plugs are male toyta harness plugs as per a toyota iso harness kit... handy eh?


I made up 8 wires about 60cm long and connected these to the back of the toyota plugs, this then ennabled me to connect directly to the speakers and run the wire back to the head unit where i then connected said wires to the iso plug that was conected to the stock power input.. if that makes sense

So the long and short (without diagrams yet) is that you ditch the stock wires that take the signal from the head unit to the amp, make a lead that takes the new signal from the new HU to the wires that come out of the amp. you then take the power from the stock head unit and feed it to the wires into the iso plug for the new HU.

I have photos of the whole job and pinouts etc etc and total costs are less than £20 all in for a complete plug and play solution with no hissing or popping..

sorry its a bit quick and crap at the moment but im at work

Share this post


Link to post
Share on other sites

cheers wozza, if i make a decent PDF or something containing the propper wiring diagrams where can i upload it.. or can LOC host it or something so it doesnt get lost in cyber space...

Share this post


Link to post
Share on other sites

I'm sure a moderator could arrange to upload it :)

It's great stuff as very few have modded the GS stereo, and I can't help anyone with a GS other than general stereo & system advice.

Share this post


Link to post
Share on other sites

well if you ever do need any help mr wozza im only down the road..

I am determined to find every little bit of helpful info on the GS as i knew my last IS inside out and i wanna get the same with this one... just gotta finish building my new workshop and i will be even more able to help..

My next thing is to develop an adaption ring so i can mount a 12" sub in place of the current 10" sub so that the car car remain stock to a point... no compramise is the theme to any of the mods in this one.. then a full write up on how to install the Parking sensors when i order them..

Share this post


Link to post
Share on other sites
cheers wozza, if i make a decent PDF or something containing the propper wiring diagrams where can i upload it.. or can LOC host it or something so it doesnt get lost in cyber space...

If you have any problems finding somewhere to put the pdf(s), let me know. I will host them on my webserver along with a couple of other Lexus pdf's Ialready host for some other folks.

Share this post


Link to post
Share on other sites

HEY THE DON I NEED SOOO MUCH HELP WITH MY AFTER MARKET RADIO I HAVE NO CLUE HOW TO DO THIS

Share this post


Link to post
Share on other sites

Does anyone know how he went about finishing this?? cmon guys plz? I just dont want to fry my shi*

Share this post


Link to post
Share on other sites
